How Automated Total Station Monitoring Works

Manual survey crews can only visit a construction site periodically, leaving gaps where structural movement goes undetected between readings. Automated total station monitoring closes that gap: robotic instruments track reflective prism targets around the clock with sub-millimetric precision, turning displacement measurement from a scheduled task into a continuous, real-time process.

This guide covers the technology and system behind AMTS, from how the instrument captures angles and distances to the accuracy factors, key components, and data tracking workflow that deliver reliable monitoring on construction and surveying projects.

What Is Automated Total Station Monitoring (AMTS)?

Automated total station monitoring (AMTS) is a geodetic measurement method used to remotely track 3D displacement of structures and ground surfaces. The system relies on robotic total stations that combine two core functions: electronic distance measurement (EDM) and angular measurement of horizontal and vertical angles. Together, these two data streams calculate precise coordinates for each reflective prism target installed at monitoring points across the project site.

The entire process runs on programmed schedules. The instrument rotates automatically from prism to prism, collecting measurements 24/7 without operator intervention. A single automated total station can measure up to one hundred  prism targets per cycle, which is why AMTS has become the standard surveying approach on projects that need continuous displacement monitoring.

How Do Automated Total Stations Differ From Manual Survey Methods?

A manual total station requires a surveyor positioned at the instrument and a rod person standing at each target. Data collection happens during scheduled site visits, which means movement between readings goes unrecorded. The time and labor cost of each visit limits how often measurements can be taken, especially on large projects with dozens of monitoring points spread across the field.

AMTS automation eliminates that constraint. Automatic target recognition (ATR) locks onto each prism without manual aiming, removing operator error from the measuring process. The robotic instrument cycles through all programmed targets automatically, delivering continuous data with no human presence required on site. Real-time threshold alerting means the project team receives notifications the moment displacement exceeds defined limits, not days later when the next manual survey report arrives.

Manual surveys still play a role as verification tools for AMTS results and for establishing the initial control network, but the day-to-day monitoring work runs autonomously with higher precision and accuracy. The mechanics behind those measurements come down to two core data streams: angles and distances.

How Does an Automated Total Station Measure Displacement?

An automated total station calculates 3D coordinates by measuring two quantities for each reflective prism target: horizontal and vertical angles and slope distance. The instrument captures both data streams in a single sighting using electronic sensors, then the system computes X, Y, Z positions through trigonometric calculation. Movements are detected by comparing current measurement coordinates against baseline values established during the initial control survey. This technology achieves sub-millimetric precision and accuracy under controlled conditions, making displacement detection a repeatable, automated process.

Angle Measurement With Encoded Glass Discs

Robotic total stations measure horizontal and vertical angles using electro-optical scanning of digital bar-code patterns etched on rotating glass cylinders inside the instrument. As the telescope rotates, electronic sensors read these patterns to determine the exact angular position with high precision. Best-grade instruments achieve 0.5 arc-second angular accuracy, with the range extending to 5 arc-seconds on construction-grade units.

Automatic target recognition is the technology that makes this process fully autonomous. The instrument identifies each prism’s reflective signature, locks onto the target, and records the angle measurement without manual aiming. ATR removes the variability introduced by human operators, one of the primary tools AMTS relies on to maintain measuring consistency across thousands of repeated cycles.

Electronic Distance Measurement to Reflective Prisms

The total station emits an infrared beam toward a reflective prism target, and the instrument measures the phase shift or time-of-flight of the returned signal to calculate the slope distance between equipment and prism.

Prism type directly affects both range and measurement conditions. 360-degree prisms accept measurement from any direction, a practical advantage on complex sites, but reduce effective range to approximately 1,500 meters. Onboard atmospheric sensors apply corrections for temperature, pressure, and humidity automatically, compensating for the environmental conditions that introduce EDM error.

3D Coordinate Calculation and Displacement Detection

The system combines angle and distance measurements to compute X, Y, Z coordinates for each prism target. Baseline coordinates are established during the initial installation survey, and every subsequent measurement cycle compares current positions against those baselines. Displacement vectors, both magnitude and direction, are calculated automatically to provide the project team with precise tracking information on how each monitoring point is moving over time. When displacement exceeds preset thresholds, the monitoring platform triggers real-time alerts.

This automated process removes the delay between data collection and decision-making: the control room receives actionable information within minutes of each measurement cycle, not days later in a report. The accuracy of the entire chain depends on the quality of every component in the system, from the instrument hardware to the data platform.

Key Components of an AMTS Monitoring System

A complete automated total station monitoring system consists of 4 interconnected components: robotic total station instruments, reflective prisms installed at target locations, stable reference points outside the zone of influence, and a cloud-based monitoring platform. Each element in this chain serves a specific function in the measurement and data delivery process, and a weakness at any point affects the quality of the final displacement data. The key to reliable field performance is matching the right equipment and technology to the site conditions and project requirements.

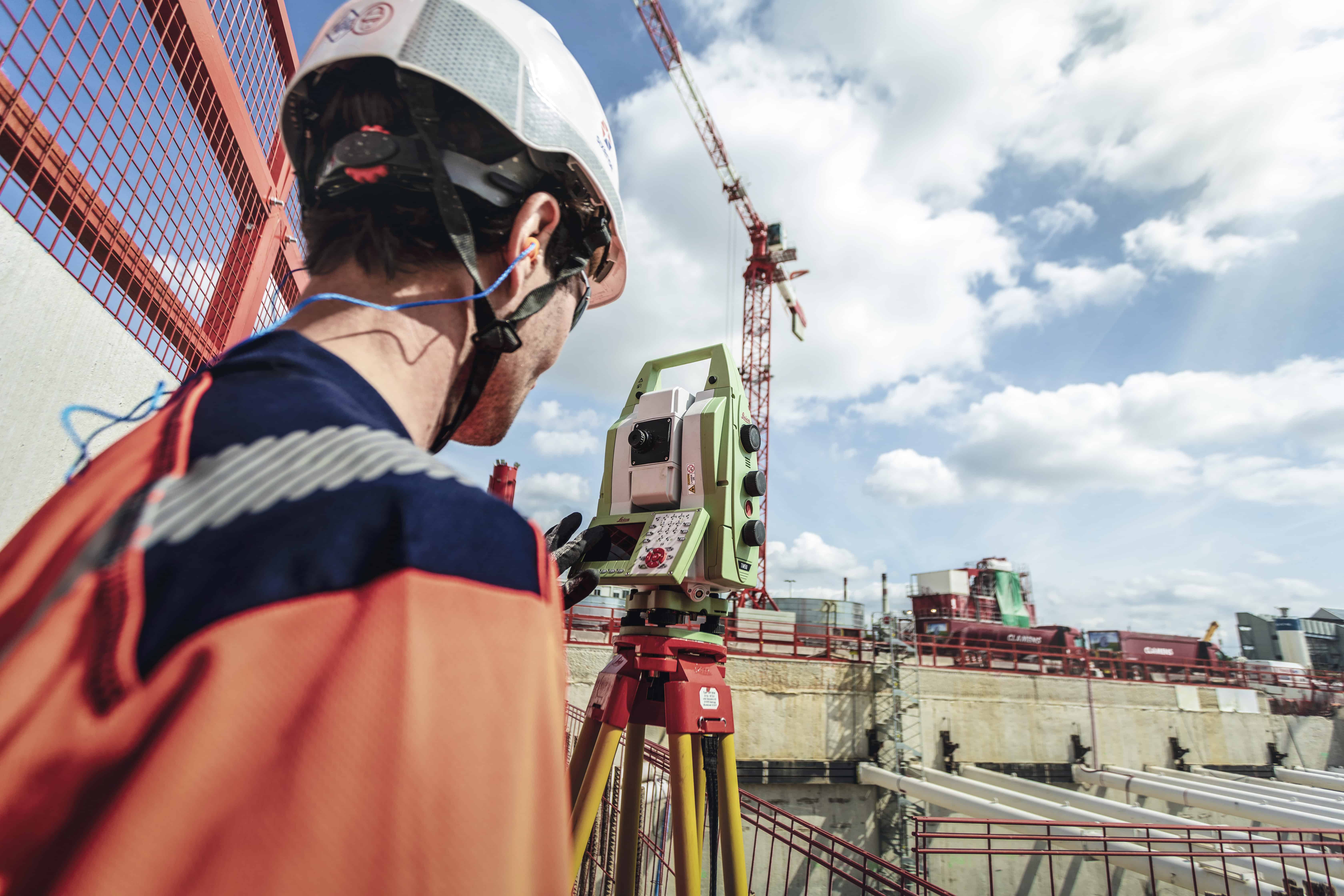

Robotic Total Station Instruments

The robotic total station is the core measurement instrument in any AMTS installation. It combines a motorized theodolite with an EDM module and automatic target recognition into a single weatherproof housing. The unit rotates automatically to locate and measure each prism in a programmed sequence, cycling through all targets without operator input. Modern instruments include advanced features: dual-axis compensators that correct for leveling errors, onboard atmospheric sensors for real-time EDM corrections, and servo-driven motors built for continuous operation.

Multiple total stations can be networked to cover large or geometrically complex project sites where a single instrument’s line of sight doesn’t reach every prism. Networking allows the system to share reference point data across stations, maintaining measurement precision and high accuracy across the entire monitoring zone. The tools available today range from compact units for confined spaces to high-end instruments designed for long-range, high-frequency measuring cycles.

Reflective Prisms and Target Placement

Every monitoring point on the project receives a reflective prism mounted on a stable bracket or pillar. Three prism types are in common use for AMTS applications, each suited to different field conditions:

• Standard round prisms deliver the highest range and accuracy, with a single reflective face oriented toward the total station
• 360-degree prisms accept measurement from any direction, which is practical on sites where multiple instruments or changing construction phases shift the line of sight
• Mini prisms fit confined spaces where a full-size target can’t be installed

Target placement follows a monitoring design that covers the zones where displacement is expected or where safety thresholds apply: foundations, structural connections, retaining walls, building facades, and settlement points. Prism selection depends on the required measuring precision, the distance to the instrument, and site-specific work constraints.

Reference Points and Stable Benchmarks

Stable reference points anchor the entire measurement system. These backsight targets are installed on ground or structures outside the project’s zone of influence, in locations where no displacement is expected. The total station measures these references every cycle to verify its own position and correct for any instrument movement before calculating target coordinates.

If the total station shifts between cycles, reference point measurements detect the displacement and the system applies a correction automatically. This self-check is a key control mechanism: without stable benchmarks, every prism measurement would inherit the instrument’s positional error, compromising the accuracy of the entire dataset. Reference point placement is one of the most important design decisions in an AMTS monitoring program, and poor placement is a common source of field accuracy problems that affect safety-critical data.

Data Communication and Cloud Monitoring Platforms

Measurements transmit from the total station to a central data server via hardwired cable, cellular modem, or site Wi-Fi. Processing software applies atmospheric corrections, computes displacement vectors, and stores the results in a cloud-based monitoring platform. Engineers and project managers access real-time dashboards showing displacement trends, threshold status, and historical data for every prism in the network.

Platforms like Beyond Monitoring deliver automated notifications when movement exceeds defined limits, allowing the project team to respond within minutes of a threshold breach. The entire data collection and alerting process runs without manual intervention, making the workflow from field measurement to decision-making fully autonomous.

Sixense North America’s AMTS monitoring solution integrates the Cyclops platform with Beyond Monitoring to provide end-to-end displacement tracking on infrastructure and construction projects.

Reliable components produce reliable data, but several external factors can still influence the accuracy of each measurement cycle.

What Factors Affect AMTS Monitoring Accuracy?

AMTS accuracy depends on a combination of instrument specifications, environmental conditions, and operational decisions made during system design. No single factor determines measurement quality on its own: the interaction between atmospheric conditions, line-of-sight geometry, and measurement frequency shapes the accuracy  achievable on any given project. Teams need to account for these key variables during the planning phase to design monitoring programs that meet even the highest accuracy thresholds. Getting these factors right from the start is important because correcting them after installation is costly and disruptive.

How Do Atmospheric Conditions Affect Measurement Accuracy?

Temperature, humidity, and barometric pressure change the speed of light through air, which directly affects EDM distance measurement accuracy. These atmospheric conditions shift continuously throughout the day, and the magnitude of their effect increases with measurement distance. Modern total station instruments correct for atmospheric variables automatically using onboard sensors, but the sensors measure conditions at the instrument location, not along the full beam path to the prism.

Heat shimmer near ground surfaces is the most disruptive atmospheric effect in field conditions. Refraction bends the infrared beam unpredictably, degrading both distance and angular precision during midday hours on exposed sites. Shielding the equipment from direct sunlight and scheduling high-priority measurement cycles during stable atmospheric windows are the most important operational countermeasures.

What Line-of-Sight Challenges Can Disrupt AMTS Monitoring?

Automated total stations require an unobstructed optical path between the instrument and every prism in the monitoring network. On active construction sites, that path faces constant disruption: cranes, formwork, scaffolding, material stockpiles, and heavy equipment all move through the field of view on unpredictable schedules. Weather conditions like heavy rain, dense fog, and airborne dust also block or scatter the infrared beam, causing missed measurements during the affected cycles.

System design is the key defense against line-of-sight disruption. Placing instruments at elevated positions with clear sightlines to all targets and distances below 500ft  reduces the risk of ground-level obstructions. On complex sites where multiple work zones overlap, multiple instrument positions provide redundant coverage and keep shots within range so that if one station loses sight of a prism, another station still captures the measurement. Accounting for planned construction phases, seasonal vegetation changes, and safety exclusion zones during the initial monitoring design prevents data gaps that would compromise the applications the system was installed to support.

How Does Measurement Frequency Influence Data Quality?

Measurement frequency defines how often the system completes a full cycle through all programmed prism targets. Cycle time ranges from a few minutes to an hour depending on the number of targets, the measurement accuracy required for each reading, and the project’s risk classification. Each target is measured in sequence, so more prisms per station means a longer cycle. Faster cycles catch rapid movements triggered by active excavation or tunneling, while slower cycles suit long-term settlement tracking.

Each measurement cycle feeds the data collection pipeline automatically. The system’s processing software validates every reading, flagging outliers caused by atmospheric disturbance, temporary obstructions, or instrument malfunction before the information reaches the control dashboard. This automated quality control process protects the integrity of the tracking dataset and supports confident decision-making by filtering noise from signal.

Deploying an AMTS system that accounts for all of these factors requires both the right technology and hands-on project experience.

Frequently Asked Questions About Automated Total Station Monitoring

How Many Points Can One Automated Total Station Monitor?

A single AMTS unit can track hundreds of prism targets per measurement cycle, with one station typically covering 10 to 100 monitoring points depending on site layout and required cycle time. Multiple stations are networked into a unified system on larger projects to extend tracking coverage across areas where line-of-sight constraints or distance limits prevent a single piece of equipment from reaching every prism.

What Is the Measurement Range of an Automated Total Station?

With standard target  prisms, measurement distances reach up to 500 feet to maintain sub millimetric system accuracy., Reflectorless EDM technology reaches 300 feet  without a prism as long as the incidence angle is steeper than 10 degrees Actual range depends on instrument height relative to the monitored reflective surface.   Can Automated Total Station Monitoring Operate in All Weather?

AMTS operates in most weather conditions, but performance degrades in heavy rain, dense fog, and snow that obstruct the optical path. Heat shimmer and strong wind vibration also affect measurement quality on exposed field installations. Heated enclosures protect equipment in cold climates, and the system design for each site accounts for expected environmental conditions to minimize data gaps while flagging missed readings for the safety team to review.

What Is the Difference Between AMTS and a Robotic Total Station?

AMTS and robotic total station describe the same base instrument, a motorized total station with automatic target recognition, but the difference is in how the instrument is used: a robotic total station is operated by a surveyor for layout and topographic surveying via handheld controller, while an AMTS runs in a fixed, unattended configuration executing programmed measurement cycles without manual input. AMTS should not be confused with GNSS monitoring, which tracks displacement via satellite positioning rather than optical line-of-sight measurement between instrument and prism.

How Long Does It Take to Install an AMTS Monitoring System?

A standard installation with 1 total station and 50-100 prism targets on an active construction site typically takes 2-5 days from equipment delivery to first automated measurement cycle. Larger networks with multiple stations, extensive reference point surveys, and complex data communication setups require proportionally longer installation periods depending on site complexity.

What Maintenance Does an AMTS System Require?

Routine maintenance includes periodic prism cleaning to remove dust, moisture, and debris that reduce signal return strength, plus manufacturer-recommended servicing of optical components and servo motors every 6-12 months depending on operating conditions. Reference point stability should be verified against known coordinates at scheduled intervals to confirm the accuracy baseline of the entire monitoring network.

What Data Outputs Does AMTS Monitoring Produce?

AMTS systems produce 3D coordinate datasets, displacement vector calculations, and time-series graphs for every monitored prism target, with the cloud platform generating automated reports showing cumulative displacement, velocity trends, and threshold status. Raw measurement data, atmospheric correction logs, and alert histories are stored for the project duration and available for export to third-party analysis tools.
