Revolutionizing Tunnel Face Mapping with Precision and Efficiency

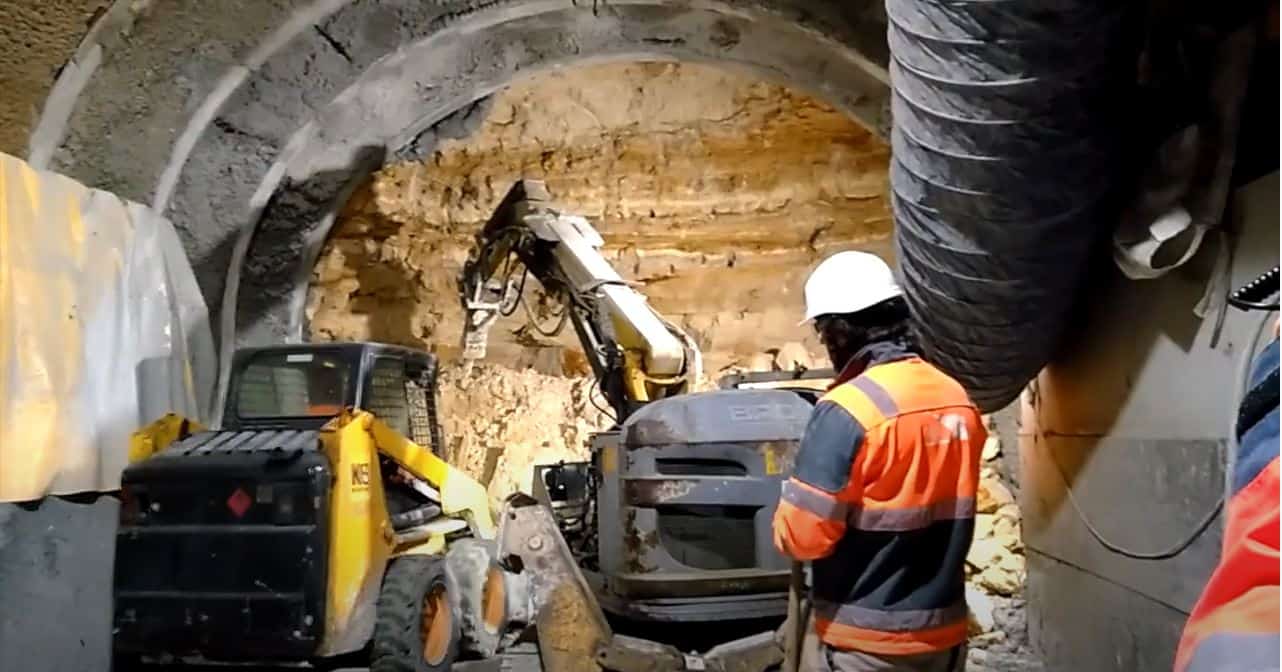

Traditional tunneling methods rely on geologists performing manual cutting face mappings through field observations and photographs. However, this conventional approach is far from optimized. Photographs are often distorted, not to scale, and fail to accurately represent the geometry of the cutting face.
Enter Pika Solution, a groundbreaking photogrammetric tool that delivers true and instant 3D reconstruction models of tunnel faces. By simply capturing a few images of the tunnel face, geologists can upload them to the Sixense Mapping beMap online platform. In just minutes, a complete suite of outputs, including an ortho-image, a 3D map, a point cloud, and a mesh, becomes available. These outputs provide an accurate representation of both the geometry and texture of the tunnel face.
The Advantages of Pika Solution
With Pika Solution, geologists gain access to unparalleled insights, such as:
- Detailed lithology and mineralized veins, showcasing their real appearance, size, and thickness.
- The precise location and orientation of fractures and cracks.
- 2D and 3D visualizations of successive tunnel faces, enabling seamless tracking of progress.
- Exact measurements of size, distance, and surface areas directly from the models.
Precision, Efficiency, and Data Management for Excavation Works
By offering exceptional accuracy and saving time, Pika Solution streamlines geologic monitoring during excavation projects. Its efficient data storage capabilities further enhance project management and enable better decision-making.
In Conclusion
As a cutting-edge innovation from Sixense Mapping, Pika Solution sets a new standard for geologic follow-ups in tunneling operations, combining precision, speed, and reliability to revolutionize the field
More information : mapping@sixense-group.com & emilie.jousset@sixense-group.com
