Lynnwood Link Extension L300 – USA

Project summary

Service provided:  Deformation monitoring during the construction of city lightrail extension
Location:  Lynnwood, Washington - USA
See google map
Client:  Skanska
Period of the service:  April 2020-October 2021
Sixense solutions used:

Images of the project

Lynnwood Link Extension L300 - USA

The proposed Lynnwood Link Extension L300 stretches the light rail from NE 200th to the Lynnwood Transit Center. The L300 north segment of the overall Lynnwood Link Extension is 3.7 miles into Snohomish County in the state of Washington. The project also includes two elevated stations and a five-story parking garage.



Monitoring

To tackle this complex project, the General Contractor (Skanska) requested an automated option for soldier pile and wall monitoring. Sixense was hired to provide these services and expertise in order to ensure the public transit project is completed safely and the client can closely follow up on critical benchmarks.

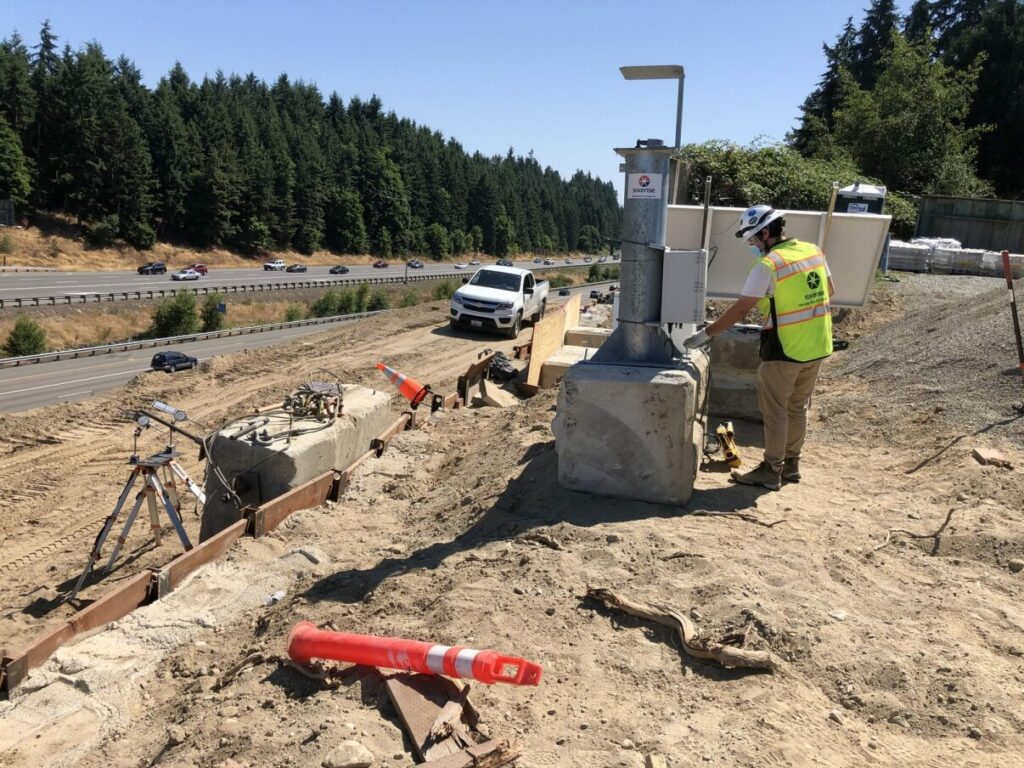

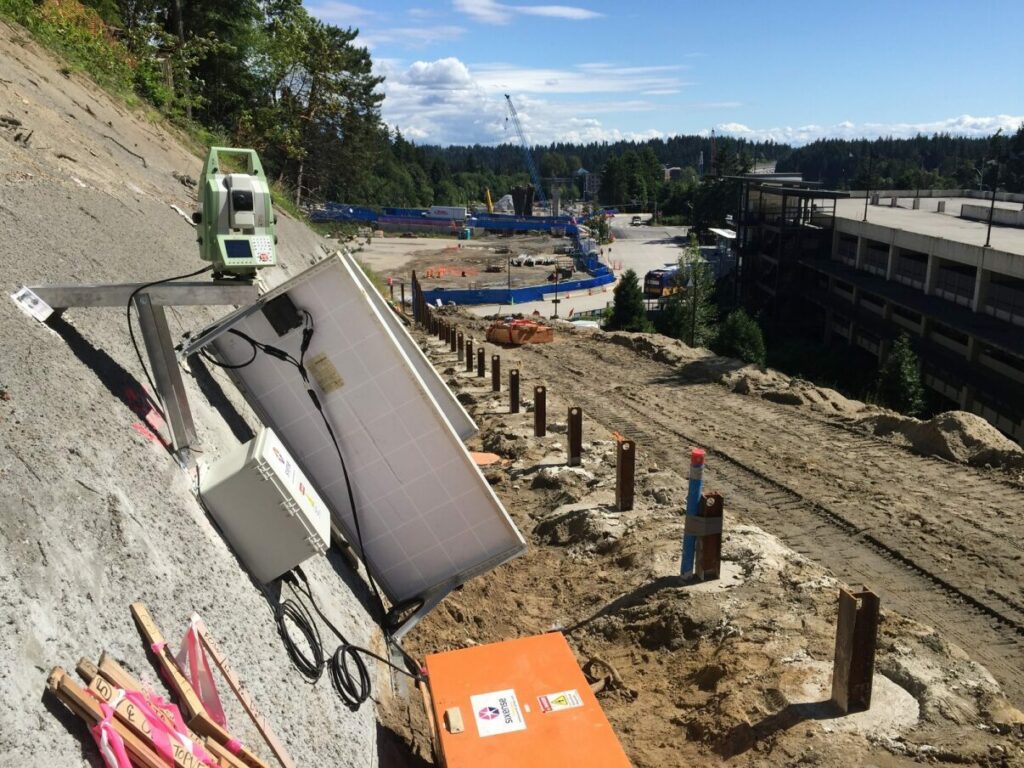

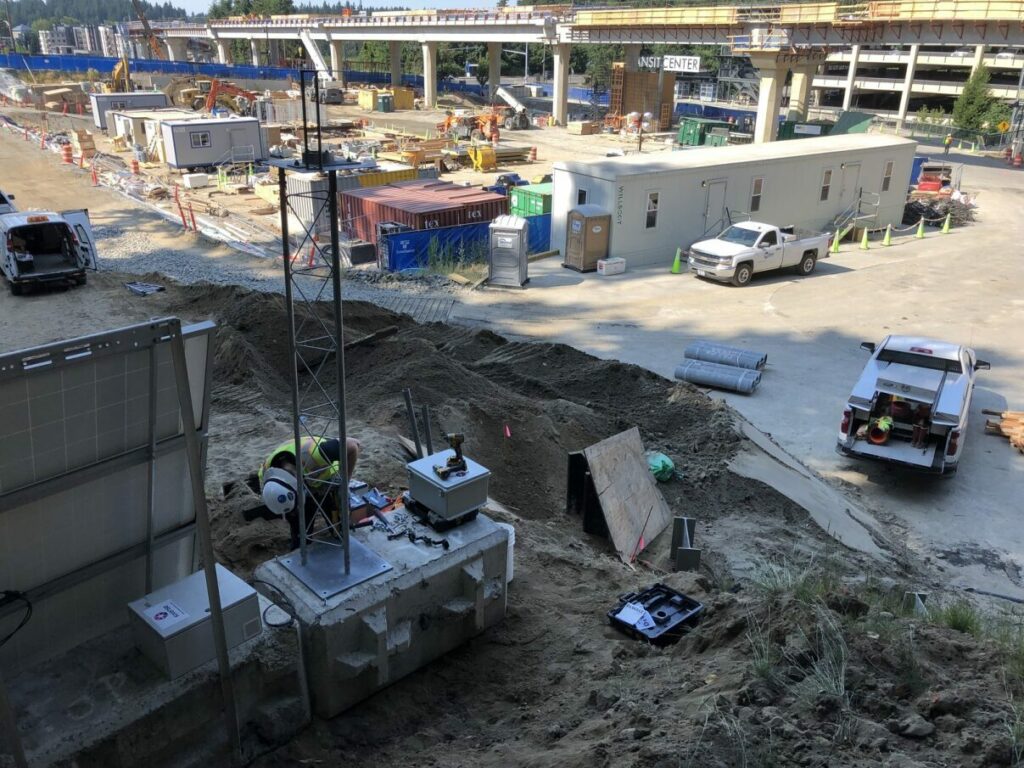

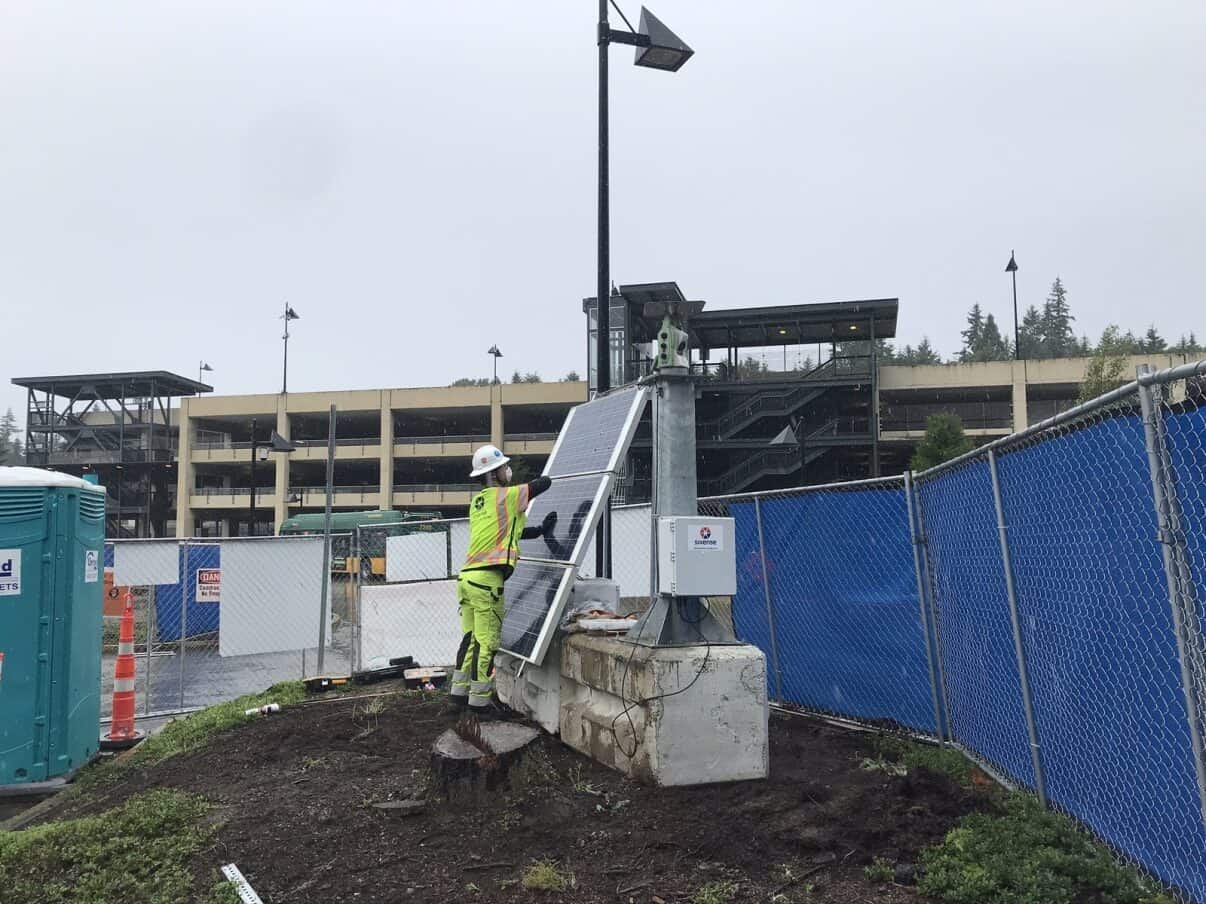

Sixese monitored the settlement and targeted optical monitoring points on locations requested by Skanska utilizing their Automated Motorized Total Stations – Cyclops.  They identified 12 Solider Pile and Wall/AMTS locations, which required automated monitoring for a site duration of 19 months.

Sixense provided and installed their Geoscope IDMS (Integrated Management Data System) on a designated server for web-enabled access to all the Cyclops AMTS Data. The Geoscope system provides web-based data collection, management, processing, and plotting. All monitoring data is then centralized into Geoscope and made available to the designated parties.



Sixense Monitoring System - Lynnwood Link Extension L300      AMTS System - Monitoring Deformation of City Lightrail - Sixense      Monitoring Public Transit Project in Washington, US - AMT Cyclops



Project Takeaways at the Lynnwood Link Extension L300

Upon opening, riders will enjoy fast, frequent, and reliable service to travel throughout the surrounding area. According to the client (Sound Transit), the projected ridership is 47,000 – 55,000 daily riders by 2026. Below is a construction drawing to demonstrate what the finalized Lynwood Station will look like once it’s complete.



Expansion of the Lynnwood Station in Washington



Utilizing Sixense’s safe, efficient, and highly innovative monitoring system, the city lightrail has an estimated completion date in the summer or fall of 2024.



Click to Download the PDF

Project Key figures

18 AMTS Locations
405 Prisms
