“Standard” Monitoring Prisms
Standard monitoring prisms are 62mm-diameter corner-cube retroreflectors mounted on L-bars or bolt-on brackets for permanent installation on structures. In reality, it is more common to utilize Mini L-Bar Prisms (25.4mm) because they are more economical and function at the most commonly shot distance ranges we see in our projects.
- Diameter: 62mm
- Accuracy: sub-millimeter
- Range: 3,500m+ with copper coating
- Mount: L-bar or bolt-on brackets (permanent)
The L-bar design positions the prism at a fixed offset from the surface, producing a stable, repeatable measurement point that holds up under variable weather conditions. For reliable decade-scale monitoring on bridges, dams, and buildings, this configuration is the most proven.
Mini Prisms for AMTS Applications

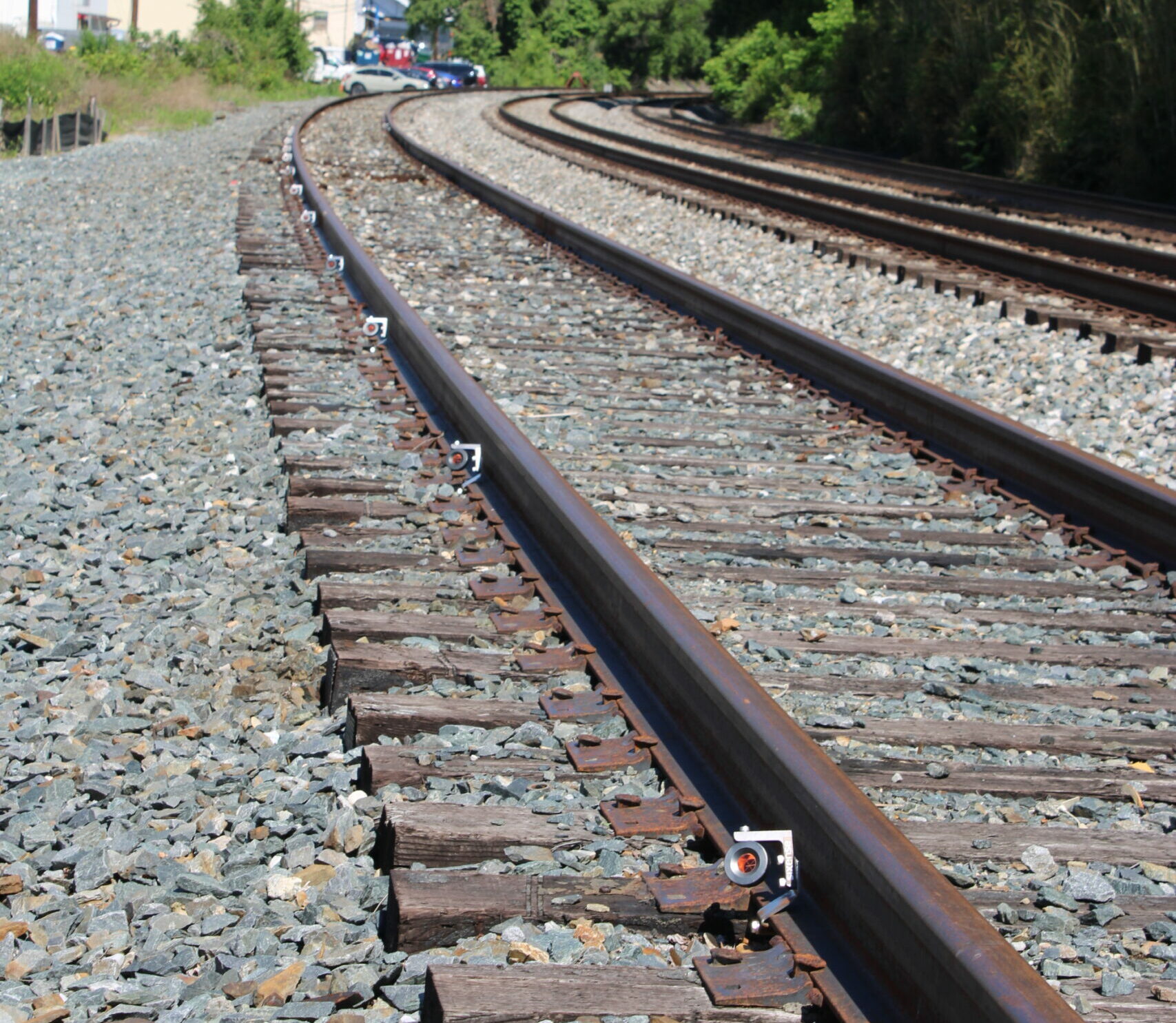

Mini prisms (12.7mm to 25mm diameter) fit where standard prisms can’t be installed or not needed due to shorter sightlines: confined spaces such tunnel cross-sections, narrow shafts, and areas with tight clearance restrictions, such as rail monitoring applications where a low profile target is essential.
- Diameter: 12.7mm to 25mm
- Accuracy: within 1mmRange: up to 2,000m, but precision must be taken into account. 200-700 feet sightlines are more common, depending on project tolerances.
- Trade-off: sacrifice range for precision
Common use cases:
- Tunnel convergence monitoring
- Urban construction adjacent to existing structures, walls, or earth retention systems
- Rail corridors where clearance limits rule out larger targets
When Are 360-Degree Prisms the Right Choice?
360-degree prisms reflect signals from any horizontal direction, which eliminates the need to aim each prism at a specific total station. This makes them ideal for multi-station networks where several AMTS units observe the same target from multiple angle positions. The trade-off is slightly reduced accuracy compared to standard prisms, because the wider acceptance angle and multi-faceted reflector geometry introduce more variability into the returned signal.
Projects that demand the highest precision at a single point typically stick with standard or mini prisms. Programs that prioritize network flexibility and automation across large systems benefit more from 360-degree units, since they simplify installation and reduce the level of alignment work at each monitoring point.
Reflective Sheet Targets vs. Glass Prisms
Reflective sheet targets (adhesive-backed retroreflective film) cost significantly less than glass prisms and can be installed in minutes.
- Accuracy: ±1–2mm
- Installation: adhesive-backed, easy installation
- Cost advantage: 20–30 reference points for the same budget as a single glass prism
- Best for: construction site applications where sub-millimeter precision isn’t critical, or space constraints necessitate a sheet-shaped target.
For projects that demand sub-millimeter readings on every point, glass prism targets remain the only accurate option at that precision level.
The target type sets the precision ceiling. How those targets perform depends just as much on the installation quality and what the project tolerances are relative to the precision delivered by the overall system.
Prism Target Applications Across Infrastructure Sectors
Prism targets serve as the measurement backbone across infrastructure sectors wherever displacement, settlement, or deformation must be tracked over time. The specific application dictates the prism type, network density, and observation frequency, but the core engineering principle stays the same across every project: fixed reflectors on the structure, a total station reading their positions, and software detecting movement between cycles.
Bridge Deformation Monitoring
Prism targets installed on bridge piers, abutments, deck sections, and bearing plates track settlement, lateral displacement, and thermal expansion cycles. Geodetic total stations paired with prism networks capture positional data from multiple vantage points across the span, building a deformation profile that reveals how the structure responds to load, temperature, and ground conditions.
Key considerations for bridge monitoring:
- USACE EM 1110-2-1009 defines precision requirements for hydraulic structure monitoring
- Lock and dam surveys are conducted from land-based control points
- Bridge programs combine prism targets with field reference benchmarks outside the zone of influence to verify instrument position between observation cycles
Can Prism Networks Track Building Movement?
Prism targets on building facades, foundation elements, and floor slabs monitor vertical settlement, lateral movements, and differential movement between structural zones. High-rise construction projects use prism networks to track plumb and alignment during multi-floor erection sequences, where even small deviations at lower levels compound as the structure rises. The need for continuous monitoring increases when adjacent excavation or tunneling activity could induce ground movement beneath the building’s foundation.
Tunnel and Underground Structure Monitoring
Convergence monitoring positions prism targets at crown, spring line, and invert locations to measure cross-sectional deformation as excavation advances. Each survey cycle captures the distance between opposing targets, revealing whether the tunnel profile is compressing, expanding, or shifting laterally. AMTS networks with prism targets track ground and structure movements induced by tunneling in real time, triggering alerts when displacement thresholds are exceeded. In some projects, surveying crews periodically verify AMTS readings with manual checks at control points to obtain redundant measurements.
Dam and Hydraulic Structure Monitoring
Long-term dam monitoring programs install prism targets on the crest, downstream face, and abutment surfaces to track movements that develop over decades. These networks measure crest displacement, differential settlement, and seasonal shifts driven by thermal expansion and hydrostatic pressure cycles. Sub-millimeter precision is standard for dam monitoring, so high-quality 62mm prisms with stable L-bar mounts and reliable control point networks are the baseline configuration, however, in some cases mini-prisms are satisfactory.
From bridges to dams, the infrastructure type shapes the monitoring network. Selecting the right prism for each project starts with matching the target to the accuracy, range, and environmental demands of the site.
Which Prism Target Fits Your Monitoring Program?
Prism target selection starts with the project’s accuracy specification, measurement range, environmental exposure, and mounting constraints. Getting the match right from the start prevents measurement errors and reduces long-term maintenance. The framework below makes it easy to match site conditions to the right target design and provide a clear selection path.
What Environmental and Mounting Factors Affect Prism Performance?
Outdoor monitoring prisms face UV exposure, temperature cycling, dust accumulation, and moisture ingress, all of which degrade signal return over time. Quality prisms use sealed housings and durable coatings rated for multi-year deployment under harsh field conditions.
Mounting method determines long-term positional stability:
- L-bar brackets bolted into concrete or steel: most repeatable readings, best for permanent installations
- Magnetic mounts and adhesive pads: better suited to temporary campaigns (weeks to months)
- Vibration-prone structures: require rigid mounting to prevent false displacement readings caused by the magnet slipping
